540 kw Slip Ring Electric Motor
720 hp, 10 pole, 3300 volt < Back
| Type | Slip Ring Electric Motor |
| Make | Mitsubishi |
| KW | 540 |
| HP | 720 |
| Poles | 10 |
| Rated RPM | 585 |
| Rated Frequency | 50 |
| Rated Voltage | Primary 3300 Secondary 950 |
| F/L Amps | primary 130 Secondary 340 |
| Mount | B3 Foot |
| Frame | 500L |
| Weight | 6100 kg |

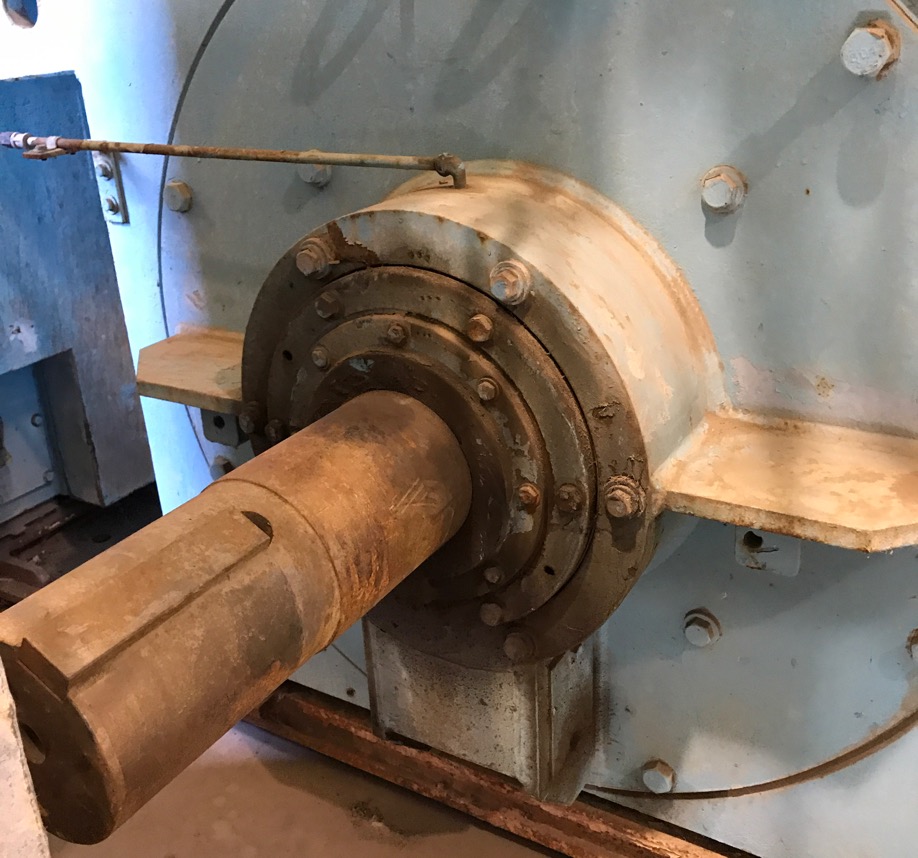

| Shaft diameter | 140 mm (200 mm Length) |
| Notes | Freight dimensions 3700 mm Long, 2100 mm Wide, 2100 mm High |
| Quantity | 2 |
| Condition | Used. Electrically OK |
