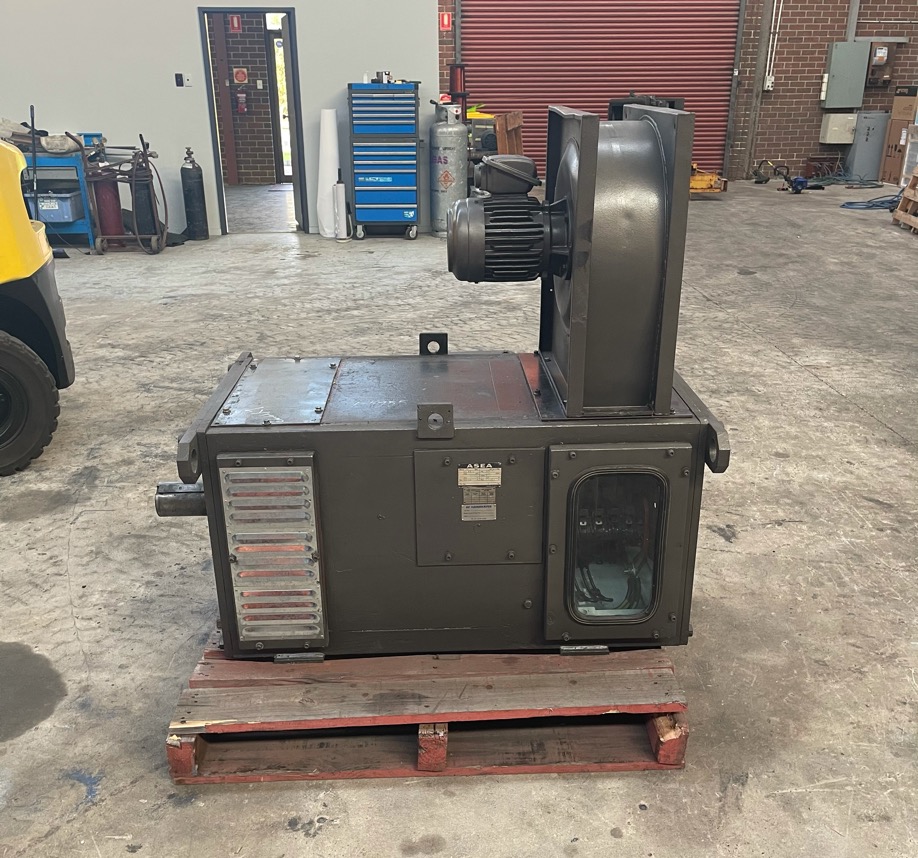

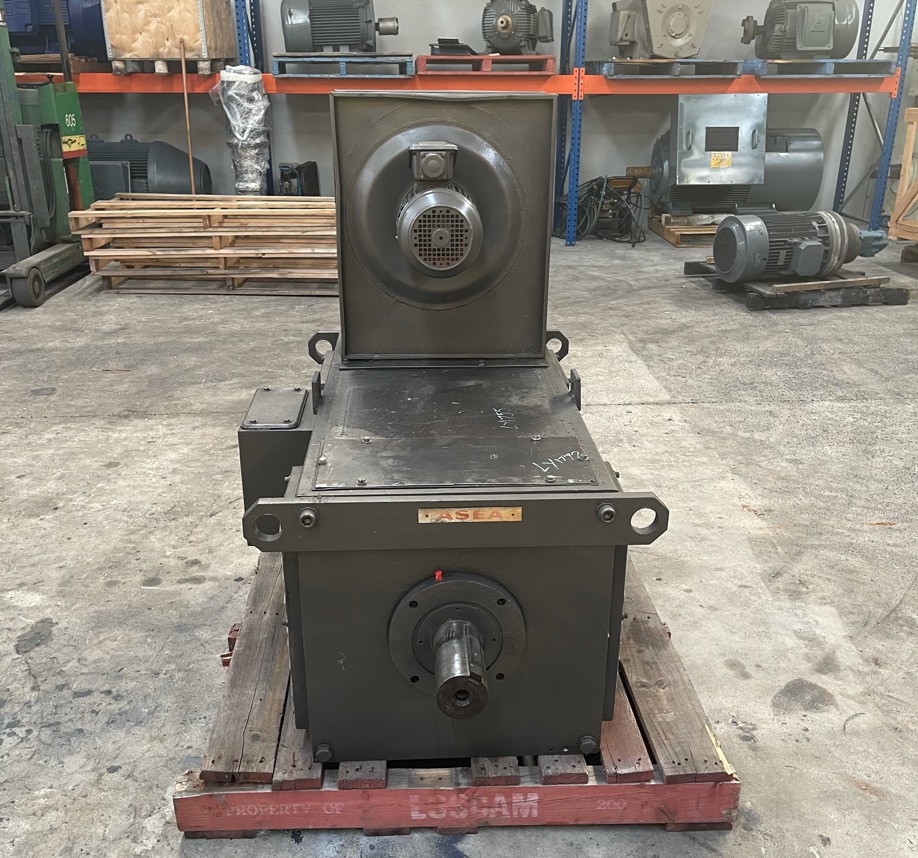

215 kw DC Electric Motor

290 hp, 1120 rpm, 440 volt, 315 frame, ASEA < Back

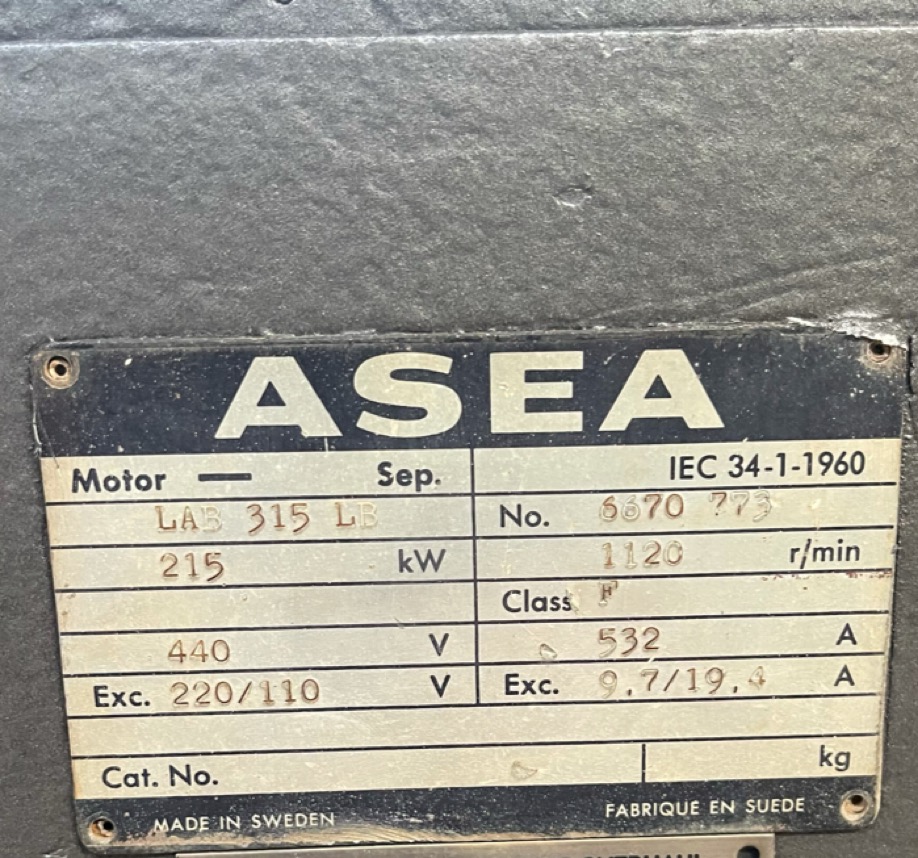

TypeDC Electric Motor
MakeASEA
Model NumberLAB315LS
KW215
HP290
Rated RPM1120
Rated Voltage440v
F/L Amps532 A
Protection RatingIP23
MountB3 Foot
Frame315
Total Length1400 mm (incl. shaft)
Total width900 mm (incl. LHS box)
Total height1400 mm (incl. Cooling unit), 600 mm (without cooling unit)
Centre shaft height315 mm
Shaft diameter90 mm
Shaft length170 mm

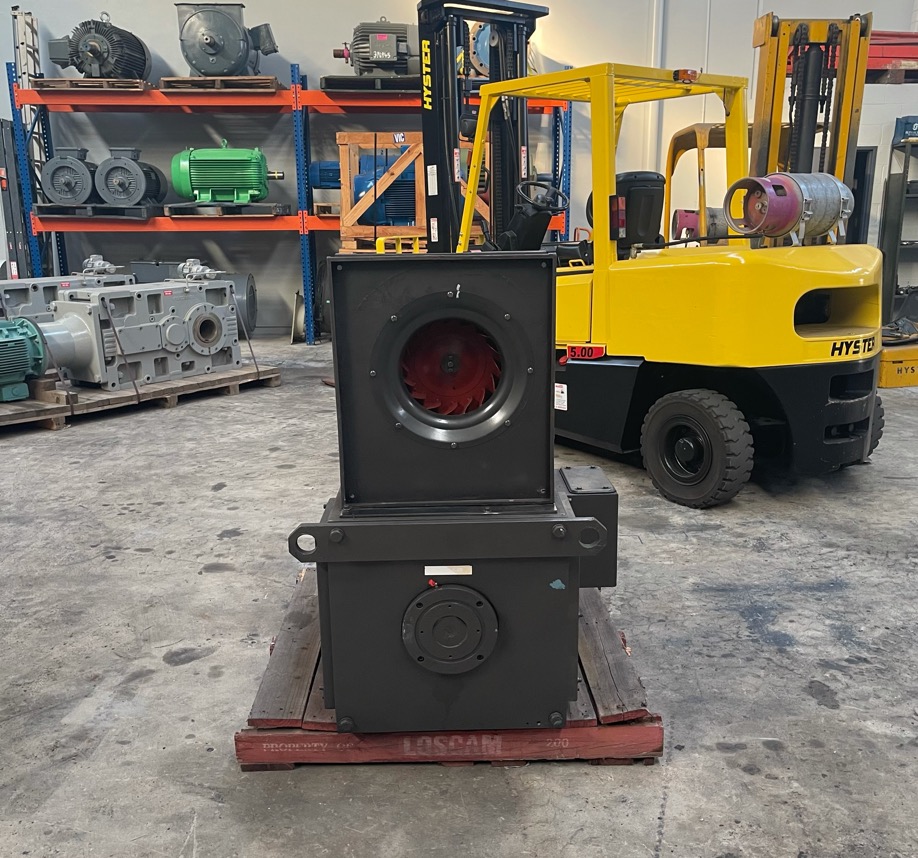

NotesCurrently set up for Water-Cooled. Can also be top mounted Blower Fan.
Quantity1
ConditionFully Reconditioned Critical Spare
