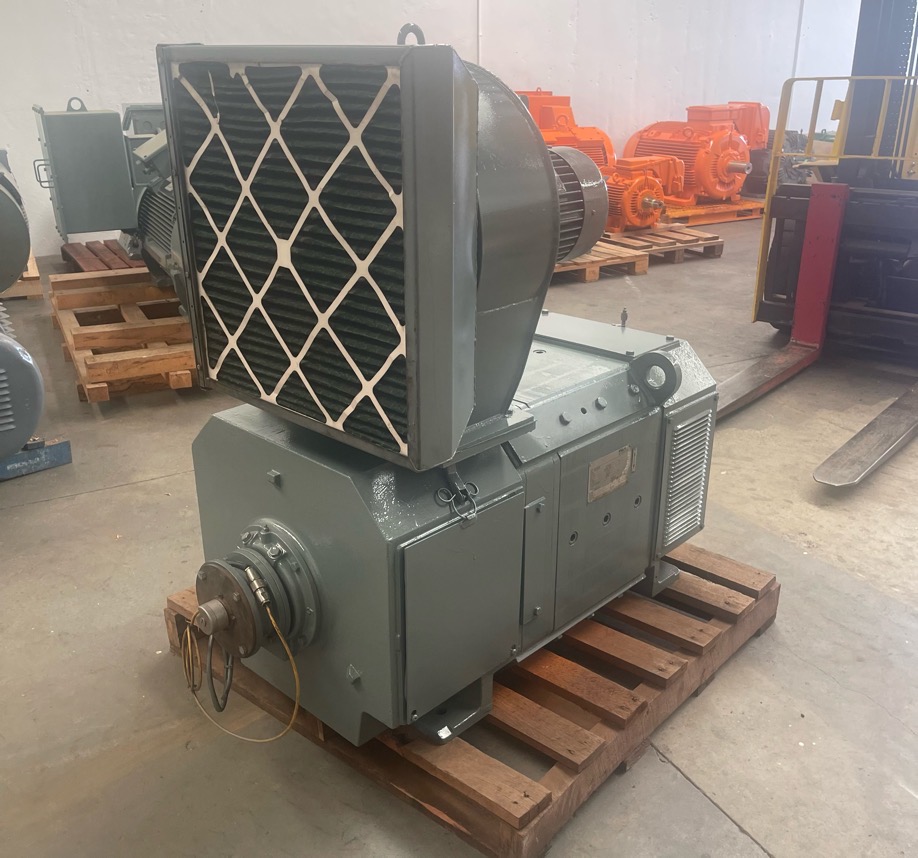

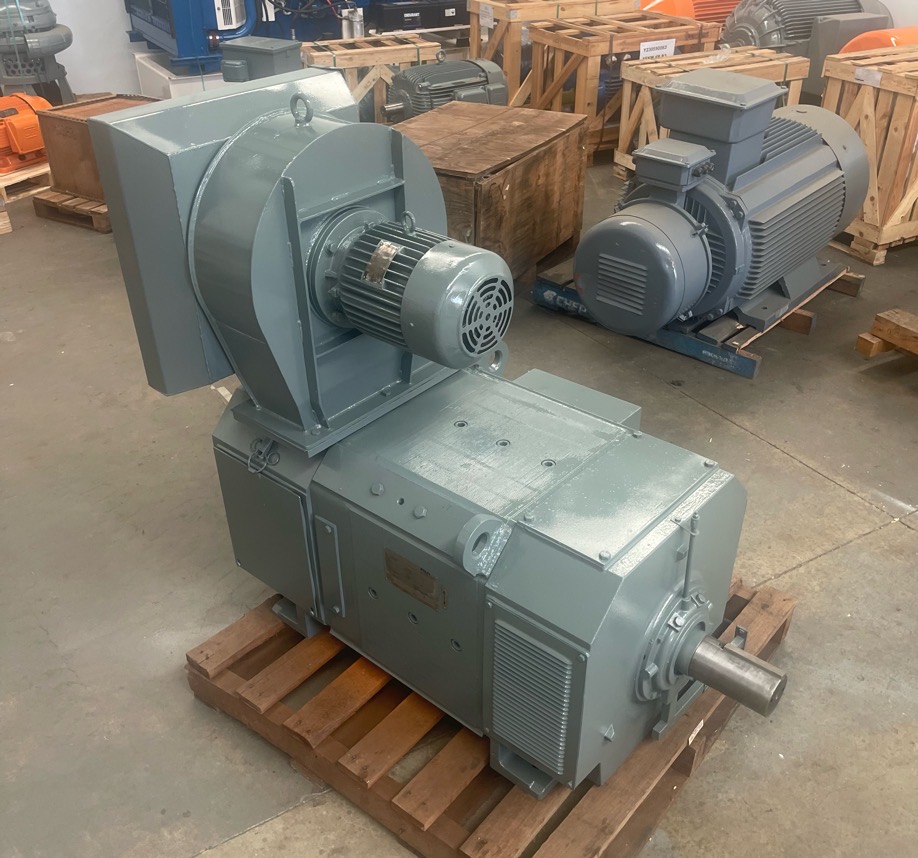

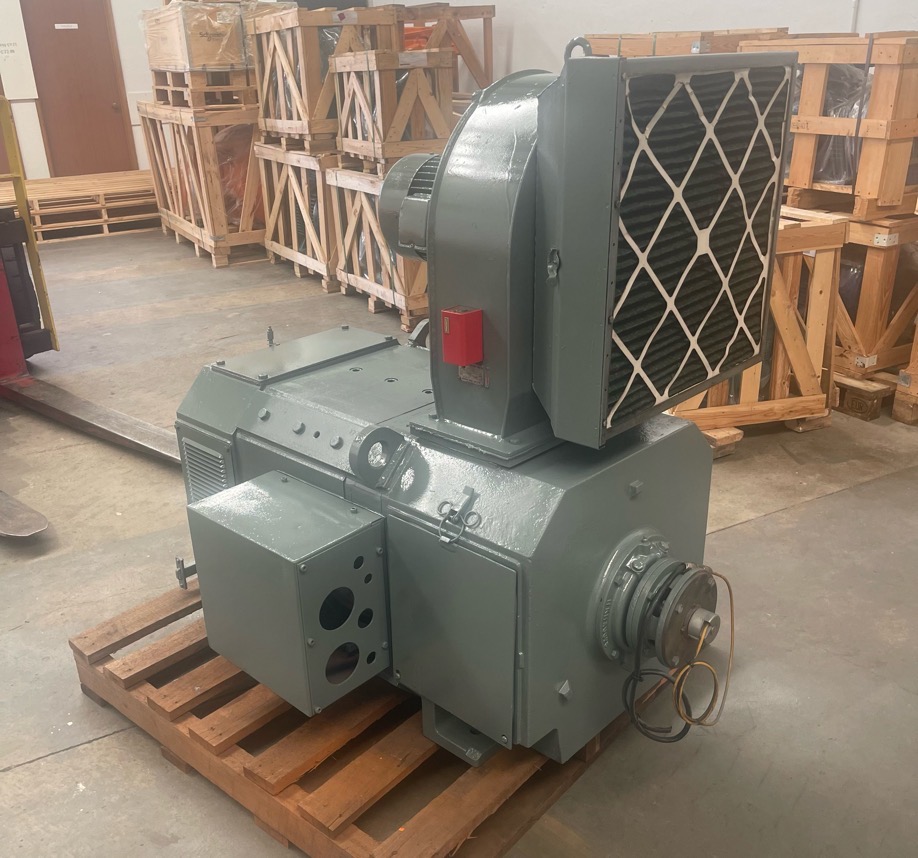

315 kw DC Electric Motor
420 hp, 1750 rpm, 440 volt, 315 frame, FUJI < Back
| Type | DC Electric Motor |
| Make | Fuji Electric |
| Model Number | GGF5314A |
| Manufacture origin | Japan |
| Year Of Manufacture | 2002 |
| KW | 315 |
| HP | 420 |
| Rated RPM | 1750 |
| Rated Voltage | 440 v |
| F/L Amps | 770 A |
| Protection Rating | IP 23 |
| Mount | Foot Mount |
| Frame | 315 |
| Total Length | 1410 mm (incl. shaft) |
| Total width | 900 mm (incl. RHS to D.E. box) |
| Total height | 1310 mm (incl. blower/cooling) |
| Centre shaft height | 315 mm |
| Feet Measurements | Across 'A' - 530 mm, Front to Back 'B' - 800 mm |
| Front hole to end of shaft | 'C' - 235 mm (approx) |
| Shaft diameter | 95 mm |
| Shaft length | 170 mm |
| Notes | Field 150v |
| Insulation Class | F |
| Quantity | 2 (identical pair) |
| Condition | Overhauled & decommissioned critical spare. Electrically OK, warehouse storage |
