Gould Type 3185L 8x10-22

355kw, 305 L/S 1100 m3/H, 80m Head < Back
TypeWater Pump
Model Number3185L 8x10-22
Year Of Manufacture2013
Rated RPM1470
Rated Frequency50
Rated Voltage415
Protection RatingHeavy Duty Process Pump
MountBareshaft Pump Only, or Skid Mounted pumpset
Weight543 kg Pump, 4300 kg Pumpset
Total Length975mm Pump, 3550mm Pumpset
Total width1000 mm Pump, 1270 mm Pumpset
Total height1025 mm Pump, 1200 mm Pumpset

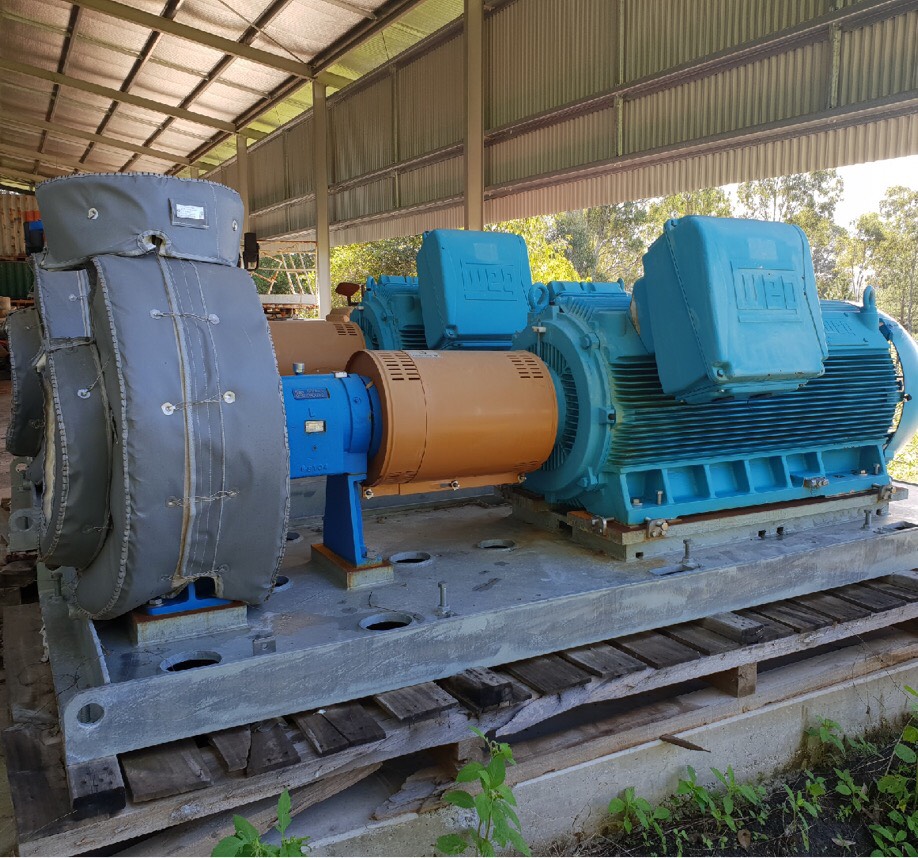

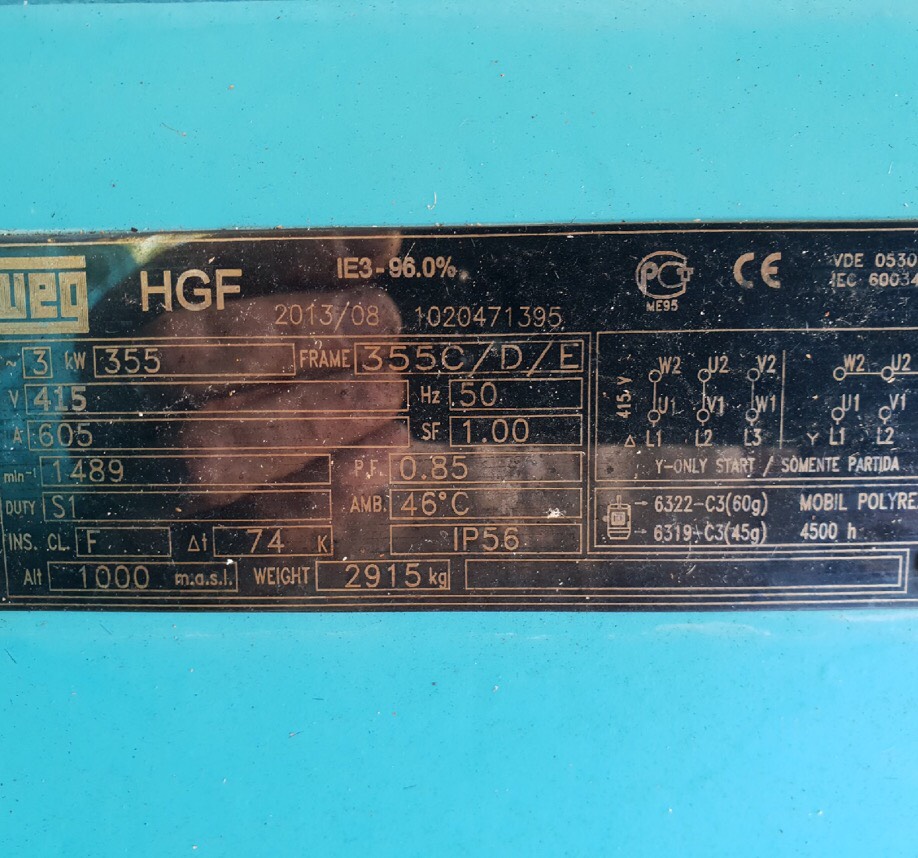

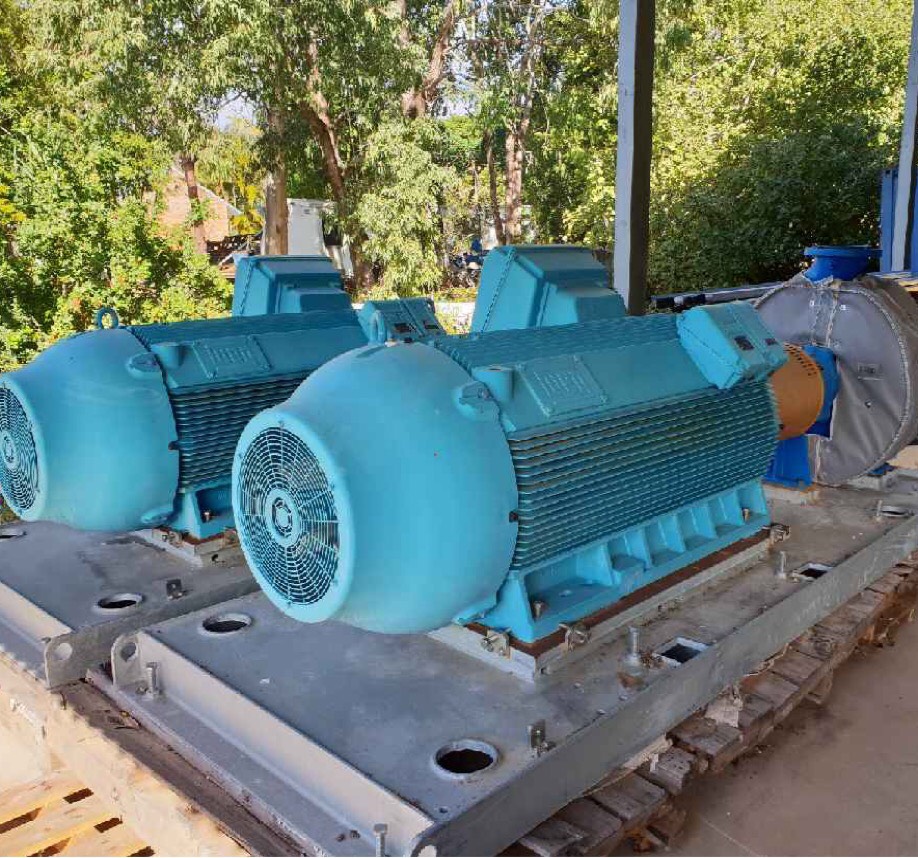

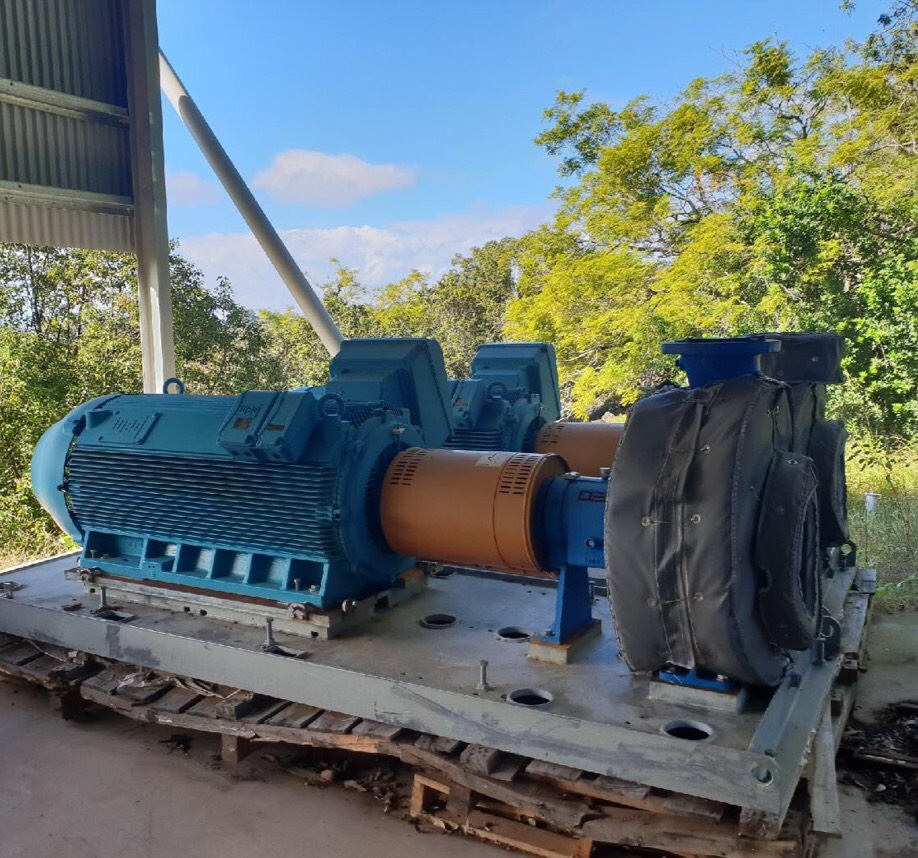

NotesCan be supplied Full skid Pumpset with WEG 355kw motor, or bareshaft pump only
Diameter Discharge mm8 inches (203.2 mm)
Diameter Suction mm10 inches (254 mm)
Flow Rate305 L/S, 1100 m3/H
Total Head80m
ConditionNew / Unused
