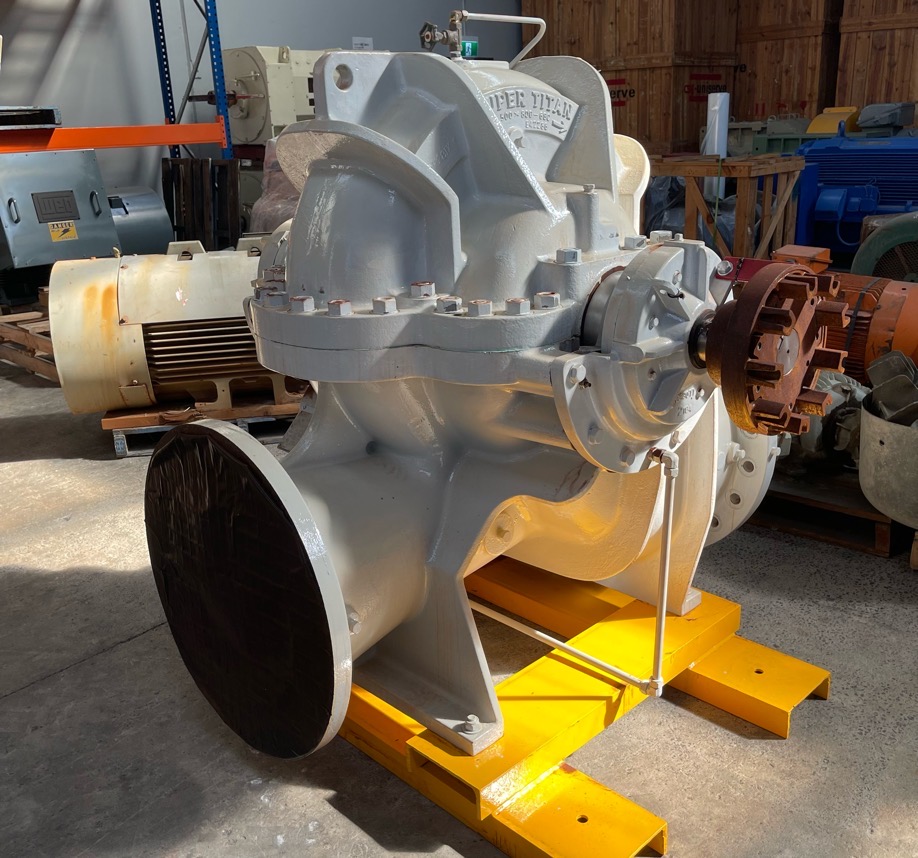

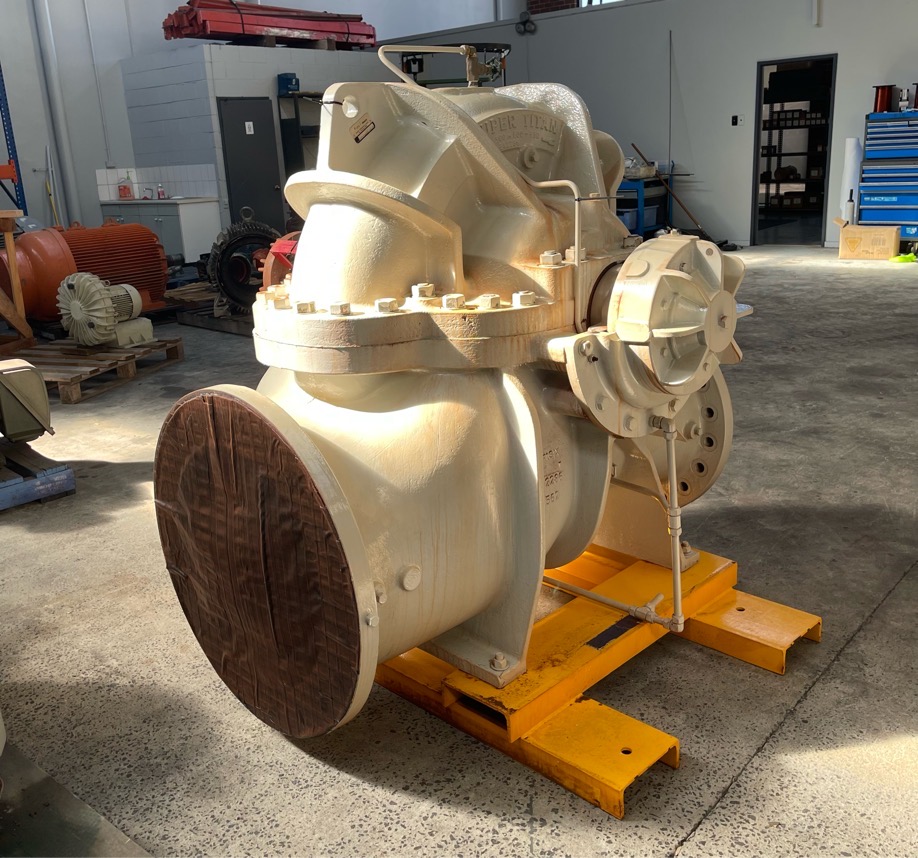

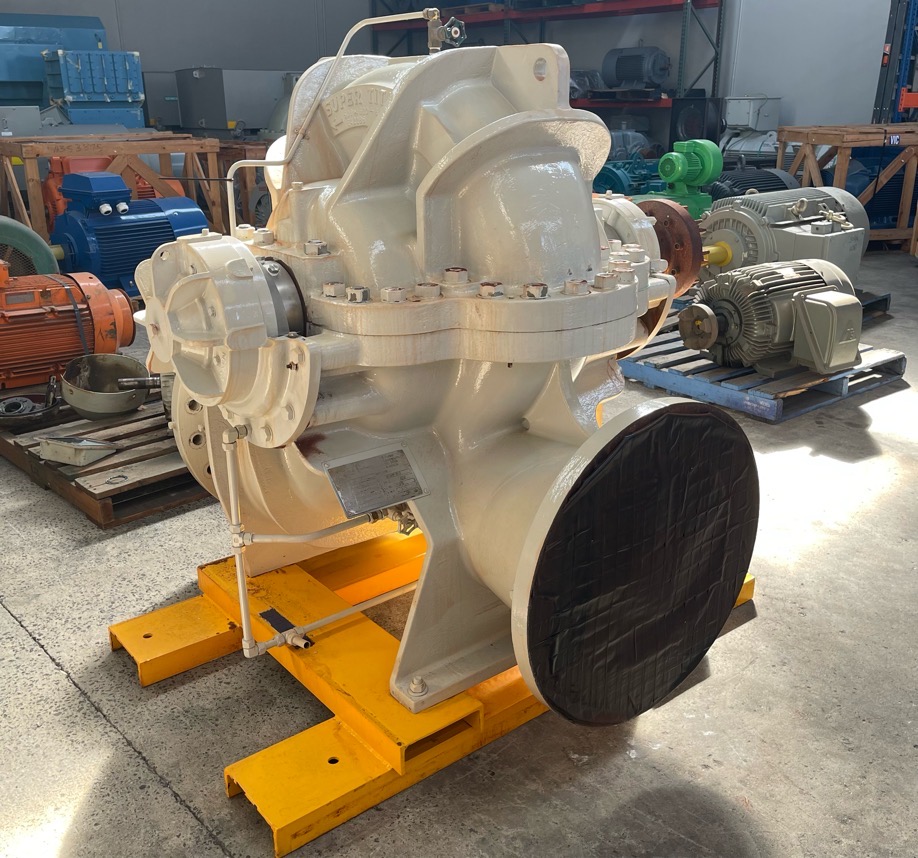

TKL Super Titan 500x600-680

575kw, 984 L/S 3542 m3/H, 73.2m Head < Back
TypeDewatering Pump
MakeTKL Thompsons Kelly & Lewis Australia
Model NumberSuper Titan 500x600-680
Manufacture originAustralia
Year Of Manufacture2012
KW575
HP770
Poles6-Pole (Maximum Catalog Speed)
MountFoot
WeightApprox. 3300kg
Total Length1575 mm
Total width1670 mm (incl. shaft)
Centre shaft height850 mm
Feet Measurements915 mm (front to back), 840 mm (across)
Shaft diameter85 mm
Shaft length170 mm
NotesData & Flow Chart on request
Frame Number18
Diameter Discharge mm500 mm
Diameter Suction mm600 mm
Nom Impeller Dia mm680 mm
Flow RateFlow at BEP 984 l/s, 3542 m3/h
Total Head73.2m Shutoff
Quantity1
ConditionNew / Unused
